Description

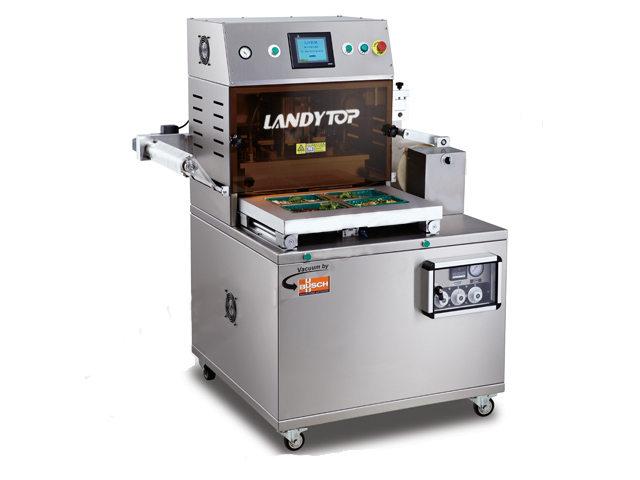

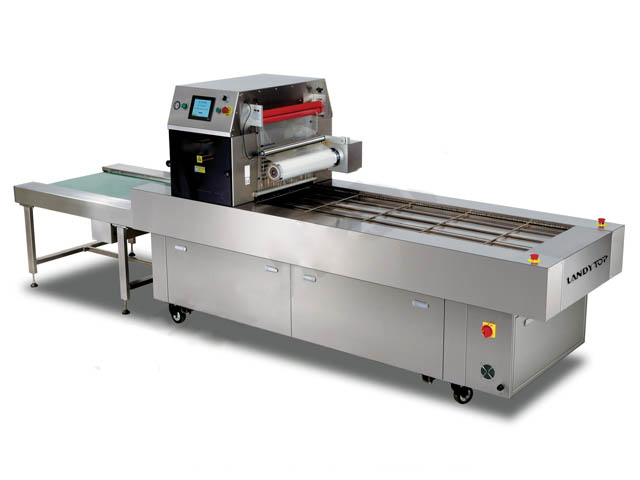

DL-410KA automatic map tray sealing machine (vacuum seal machine) is a special type of tray food sealer.
The basic principle of the packing is isolating the food from the ambient air with high barrier materials (plastic pallet and sealing film), and filling gas mixture into the pallet to maintain the original flavor and appearance of the food for a long time, then suppress growing of bacteria and microbe to the fullest extent possible.
Application of Automatic Map Tray Sealing Machine
DL-410KA vacuum seal machine can be used for fresh-keeping packing of different types of fresh and cooked food.
The type and mixing proportion of fresh keeping gas are different for different types according to the food’s characteristics. So the tray food sealer needs to adapt to adjusting different gases and gas proportion.

Technical Characters of Automatic Map Tray Sealing Machine
1. Control System: OMRON PLC programmable control system.
The data setting and motion control are more accurate and the performance is more reliable, so the operation is easier.
2. Electric System: France Schneider Electric Elements is equipped with long service life and high applicability to assure reliable quality.
3. Pneumatic System: SMC pneumatic elements.
The quality of the vacuum seal machine is stable and reliable and the service life is long. Equipment failures, suspension of work and even other quality accident caused by component quality can be avoided
4. Vacuum System: Germany BUSCH vacuum pump (high oxygen vacuum pump) is equipped with high vacuum degree and long service life to assure reliable quality.
5. The Germany WITT gas mixer is adopted for real-time gas mixing, which accuracy is higher than ± 1%. The quality of food packing of each box is guaranteed to be always consistent. The preservation period of the packed food are controlled effectively.
6. Structure Material: Regarding to the main structure material, vacuum seal machine adopts 304 Stainless Steel, which is safe and easy to clean.

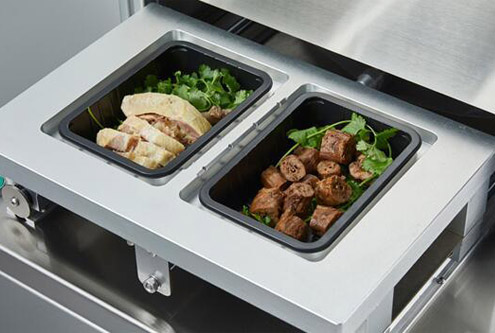

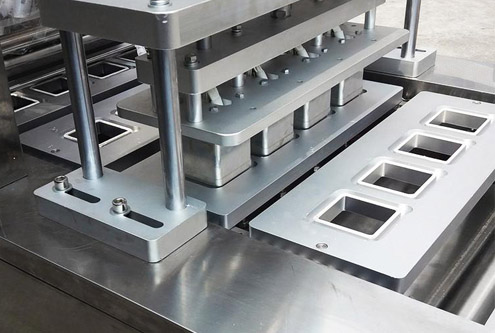

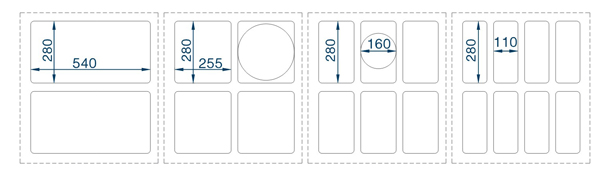

7. Easily replaceable of sealing mould: Different size of the trays is available according to different requirement.
8. Work status indication:
DL-410KA automatic map tray sealing machine uses an operating program status and failure real-time display function to monitor the equipment to ensure the normal operation.
9. Gas detection method: precise gas detection means.
Germany WITT gas analyzer is used for testing the gas within the food packing period to ensure vacuum seal machine reaching the specified precision.

10. Packing executive system:
The totally enclosed packing executive system is isolated from the operator to completely eliminate the potential hazard in the packing process.
11. Automatic conveying system: special stainless steel conveying system is adopted. It’s safe, healthy, reliable and more convenient to clean.

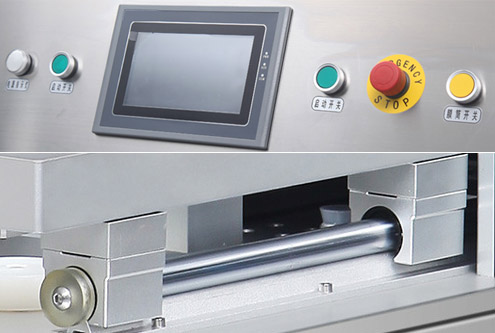

12. Emergency stop switch:
Vacuum seal machine is equipped with an emergency stop switch which can be pressed in case of abnormal condition to terminate all ongoing work programs and guarantee the safety of equipment and personnel.

13. Heavy duty casters: Universal caster wheels with brake function are mounted at the bottom of the automatic map tray sealing machine for users to move and fix the vacuum seal machine
14. DL-410KA vacuum seal machine features high degree of automation, reliable quality, long service life, high yield and wide applicability.
15. According to different fresh-keeping gases required by the food, mixing ratio is classified into three fresh-keeping gases, two fresh-keeping gases and one fresh-keeping gas to meet the different needs of the users.

Technology Specification
