DT-7 Table Top Tray Sealer

Description
DT-7 table top tray sealing machine is widely applicable to the package of ready meals, fresh and cooked meats, fish vegetables. It is typically found in supermarket, local butchers and grocers.

Application of Food Tray Sealing Machinery
DT-7 table top tray sealing machine is applicable to fresh-keeping packaging of all types of boxed fresh, cooked food, such as cool fresh meat, cooked meat products, fast food, pastry, rice noodle, cheese, soy products, aquatic products, poultry and other boxed foods.

Technical Characters of Food Tray Sealing Machinery
1. OMRON digital control system:
The data setting and motion control are accurate and the performance is reliable, so the operation is easier.
2. The sealing mould can be changed. One machine is available for multiple different trays.
3. Structure Material: The main structure material adopts 304 Stainless Steel. It is safe and easy to clean.
Technology Specification

Model
DT-7 Table Top Tray Sealing Machine
Max Tray Dimensions(mm)
350 × 295 × 60
Max Width of Film(mm)
410
Max Diameter Of Film(mm)
300
Packaging Speed(times/min)
5-6
Electrical Requirement
1P/220V/50HZ
Consume Power(kW)
1.5
Main Machine Weight(kg)
132
Main Machine Dimensions(mm)
900 × 640 × 730

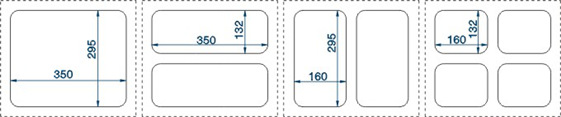

Die Plates Available Format

    1. DT-7 Table Top Tray Sealer

      Flexible and reliable packaging equipment systems

    1. DT-7 Table Top Tray Sealer

      Multiple package sizes, Quick mold switching

    1. DT-7 Table Top Tray Sealer

      Intelligent control / Precision parts

    1. DT-7 Table Top Tray Sealer

      Complete Hermetic Seals Every Time

DT-7 Table Top Tray Sealer
