DZ-1000/Q Pneumatic Operation Vacuum Packaging Machine

Machine Description
Regarding to the main structure, the pneumatic operation vacuum packing machine (DZ-1000/Q vacuum sealer) is primarily made of 304 Stainless Steel.
The vacuum sealer is equipped with large vacuum chamber and wide application. The sealing bar is up to 1000mm, which is suitable for packing large meat and medicine.

Scope of application of DZ-1000/Q Vacuum Sealer
Pneumatic operation vacuum packing machine is applicable to vacuum packing of various food, medicine, marine food, chemical product and electrical product.

Technical Characters of Pneumatic Operation Vacuum Packing Machine
1. The security measures of the DZ-1000/Q vacuum sealer only can be started by simultaneous operation of both hands, which effectively prevents security incidents caused by malfunction of the operator.
2. With big capacity vacuum pump which could achieve maximum vacuum degree in short time and improve working efficiency.
3. The vacuum chamber is made from stainless steel, and it is easy to clean during the operation.
4. The vacuum lid uses the stainless steel cover and acrylic, which features exquisite appearance, good sealing, and high mechanism intensity.
5. This DZ-1000/Q vacuum sealer uses simple operation design. After setting parameter of all packing, then turning on the power switch, the desired vacuum packing and sealing can be carried out.
6. The heavy duty casters (with brake) on the machine features superior load bearing performance, so that the user may move the machine with ease.
7. The vacuum lid is designed with exquisite appearance, good sealing effect and high mechanical strength. It completely avoids deformation and leaking and other problems.

Technology Specification

Model
DZ-1000/Q Vacuum Sealer
Machine Dimensions(mm)
1230 ×930× 1100
Chamber Dimensions(mm)
720 × 1050 × 280(100)
Sealer Dimensions(mm)
1000 × 8
Vacuum Pump(m3/h)
45
Power Consumption(kW)
1.1
Electrical Requirement(v/Hz)
380/50
Production Cycle(times/min)
1-2
Net Weight(kg)
244
Shipping Dimensions(mm)
1275 × 1000 × 1235

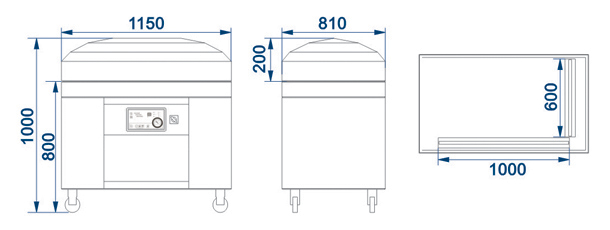

Sketch Map

    1. DZ-1000/Q Pneumatic Operation Vacuum Packaging Machine

      Flexible and reliable packaging equipment systems

    1. DZ-1000/Q Pneumatic Operation Vacuum Packaging Machine

      Multiple package sizes, Quick mold switching

    1. DZ-1000/Q Pneumatic Operation Vacuum Packaging Machine

      Intelligent control / Precision parts

    1. DZ-1000/Q Pneumatic Operation Vacuum Packaging Machine

      Complete Hermetic Seals Every Time

DZ-1000/Q Pneumatic Operation Vacuum Packaging Machine
