DZ-700-2SB Double Chamber Vacuum Packaging Machine

Description
Equipped with big capacity vacuum pump, the vacuum packing equipment could achieve maximum vacuum degree in short time and improve working efficiency.
Double chamber vacuum packing machine is characterized by automatic process of vacuuming, sealing, printing, cooling, which is used in vacuum packaging food, pharmaceutical, chemical and electric industries.
The vacuum packing equipment can prevent the products from oxidization and mildew, as well as corrosion and moisture, keeping the quality and freshness and prolonging the storage time.

Application of Double Chamber Vacuum Packing Machine
DZ-700-2SB vacuum packing equipment is applicable to vacuum packing of various food, medicine, marine food, chemical product and electrical product.

Technical Characters of Double Chamber Vacuum Packing Machine
1. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
2. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
3. The floated vacuum pump is easy to operate and improved the working efficiency.
4. The vacuum packing equipment is primarily made of 304 Stainless Steel.
5. DZ-700-2SB double chamber pneumatic vacuum packaging machine composes flat vacuum chamber. It is easy to clean during the operation.
6. The heavy-duty casters (with brake) on the machine features superior load bearing performance, so that the user can move the machine with ease.

Technology Specification

Model
DZ-700-2SB Vacuum Packing Equipment
Machine Dimensions(mm)
1655 × 780 × 1080
Chamber Dimensions(mm)
810 × 610 × 180
Sealer Dimensions(mm)
700 × 8 × 2
Vacuum Pump(m3/h)
63
Power Consumption(kW)
1.52
Electrical Requirement(v/Hz)
380/50
Production Cycle(times/min)
1-2
Net Weight(kg)
265
Shipping Dimensions(mm)
1690 × 990 × 1220

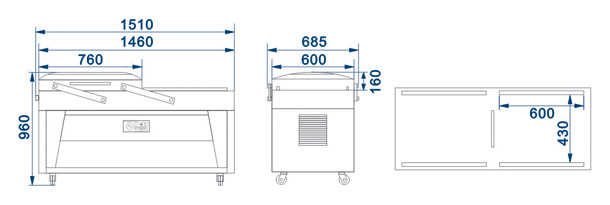

Sketch Map

    1. DZ-700-2SB Double Chamber Vacuum Packaging Machine

      Flexible and reliable packaging equipment systems

    1. DZ-700-2SB Double Chamber Vacuum Packaging Machine

      Multiple package sizes, Quick mold switching

    1. DZ-700-2SB Double Chamber Vacuum Packaging Machine

      Intelligent control / Precision parts

    1. DZ-700-2SB Double Chamber Vacuum Packaging Machine

      Complete Hermetic Seals Every Time

DZ-700-2SB Double Chamber Vacuum Packaging Machine
