Description

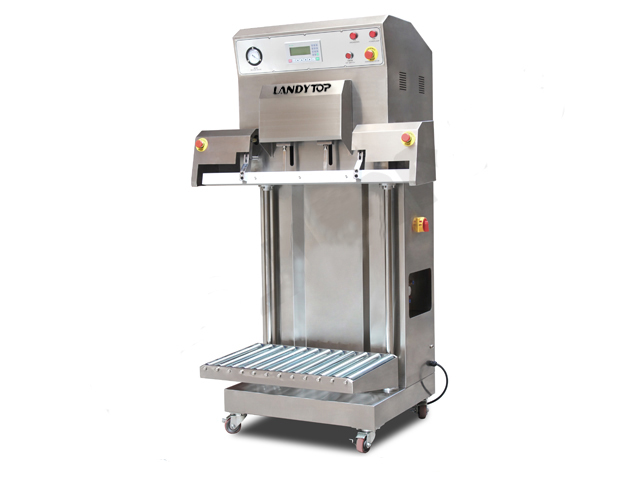

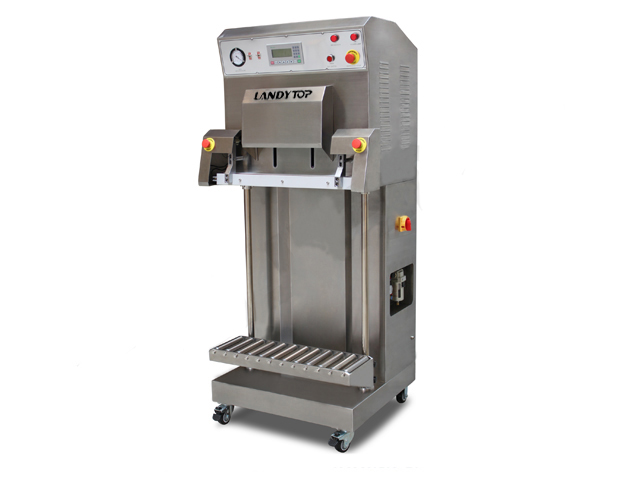

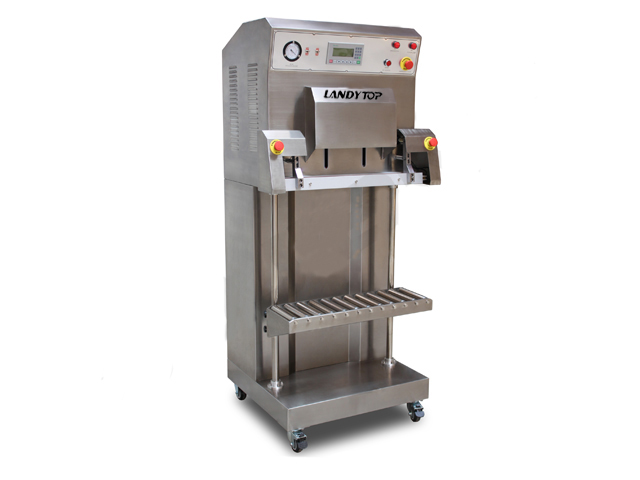

DZQ-1000L external strip machine uses microcomputer control system for setting precise and stable parameters of all packing . Long-term stable operating is possible for just one preset.
Application of Vacuum Packing Equipment
External strip machine is especially suitable for vacuum packing sealing of large packing bag, such as meat, grain, herbs, medicines, chemicals, powder goods, electronic products.
Technical Characters of Vacuum Packing Equipment
1. Double-cylinder dual-mouth structure is adopted. The exhaust (charge) speed is fast and the work efficiency is high.
2. The main structure of the vacuum packaging machine is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
3. The external strip machine is equipped with emergency stop switch. In case of accident, the operator may press the emergency stop switch at any time to terminate the ongoing work program and make the equipment restore the initial state
4. The display and control components on the control panel make the equipment work status absolutely clear and facilitate the operation of the machine.
5. The user can preset exhaust, gas filling and sealing process when required. The preset packing procedure can be completed by just pressing the start button.
6. The main structure of the external strip machine is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
7. Due to the attribute of vacuuming and filling inert gas and aroma, the machine can prevent oxidation to achieve a purpose of long-term preservation and prevent volatilization of the aroma.
Technology Specification of Vacuum Packing Equipment
Model |
DZQ-1000L/S |
DZQ-1000L |
Machine Dimensions(mm) |
1070 × 900 × 1800 |
1070 × 900 × 1800 |
Sealer Type |
Double Sealer |
Single Sealer |
Sealer Dimensions(mm) |
1000 × 10 × 2 |
1000 × 10 |
Sealer Power Consumption(kW) |
1 |
0.6 |
Pump Capacity(m3/h) |
20 |
20 |
Pump Power Consumption(kW) |
0.9 |
0.9 |
Electrical Requirement(v/Hz) |
220/50 |
220/50 |
Production Cycle |
2-3 Time/Min |
2-3 Time/Min |
Conveyor Adjustment Range (mm) |
0-700 |
0-700 |
Distance Between Conveyor Working Table and Ground (mm) |
370 |
370 |
Net Weight(kg) |
115 |
115 |
Flexible and reliable packaging equipment systems
Multiple package sizes, Quick mold switching
Intelligent control / Precision parts
Complete Hermetic Seals Every Time
