Description
DZ-350/GS floor vacuum packing machine uses microcomputer control system, which has the merits of reasonable structure, stable performance, wide application, and convenience maintenance.
Application of Vacuum Packing Equipment
Floor vacuum packaging machine is applicable to meat, marinade products, aquatic products, marine products, vegetables, agricultural products, preserved fruit, grain, bean products, medicine, appliance etc.
Technical Characters of Vacuum Packing Machine
1. Microcomputer control system is used for precise and stable setting vacuuming and sealing time according to different packing materials and packing requirements, which is easy to operate.
2. Equipped with high efficiency vacuum pump, lower noise, and big capacity, our vacuum packing machine works steadily and reliably.
3. The "V” shaped chamber lid gasket is made of high-density material, which ensures sealing performance.
4. Service life of sealing tape can be extended by using compressed and wearing resistance material, and change frequency can be also reduced.
5. The main structure of the vacuum packing machine is made of 304 Stainless Steel to ensure its elegant appearance as well as the anticorrosion in harsh caustic environment.
6. The vacuum lid is made of high-quality acrylic material, which is solid and transparent for observing the packing situation within the vacuum chamber at any time.
7. High-degree automatic allows the vacuuming, sealing and cooling to automatically start after close the lid.

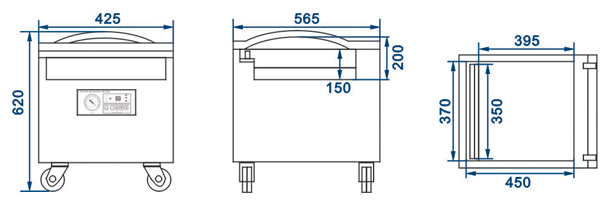

Technology Specification
Model |
DZ-350GS Vacuum Packing Machine |
Machine Dimensions(mm) |
565 × 425 × 620 |
Chamber Dimensions(mm) |
450 × 370 × 200 (150) |
Sealer Dimensions(mm) |
350 × 8 |
Vacuum Pump(m3/h) |
20 |
Power Consumption(kW) |
0.9 |
Electrical Requirement(v/Hz) |
220/50 |
Production Cycle(times/min) |
1-2 |
Net Weight(kg) |
58 |
Shipping Dimensions(mm) |
680 × 550 × 750 |
